About Baofeng UV-5R

▶ The Baofeng UV-5R is a compact handheld radio scanner transceiver providing 4 watts in the frequency range of 136-174/400-520 MHz. It is a compact, economical HT that includes a special VHF receive band from 65-108 MHz which includes the regular FM broadcast band. Dual watch and dual reception are supported.

▶ Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and a built-in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. omes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter, and drop-in charging tray.

　

Functions:
1. Frequency Range: 136-174MHz, 400-520MHz (TX) | 144-148, 136-174MHz, 400-520MHz (RX)
2. Dual-Band Display, Dual Freq. Display, Dual-Standby
3. Output Power: 4 /1Watts
4. 128 Channels 50 CTCSS and 104 DCS
5. Built-in VOX Function
6. 1750Hz Brust Tone
7. FM Radio (65.0MHz-108.0MHz)

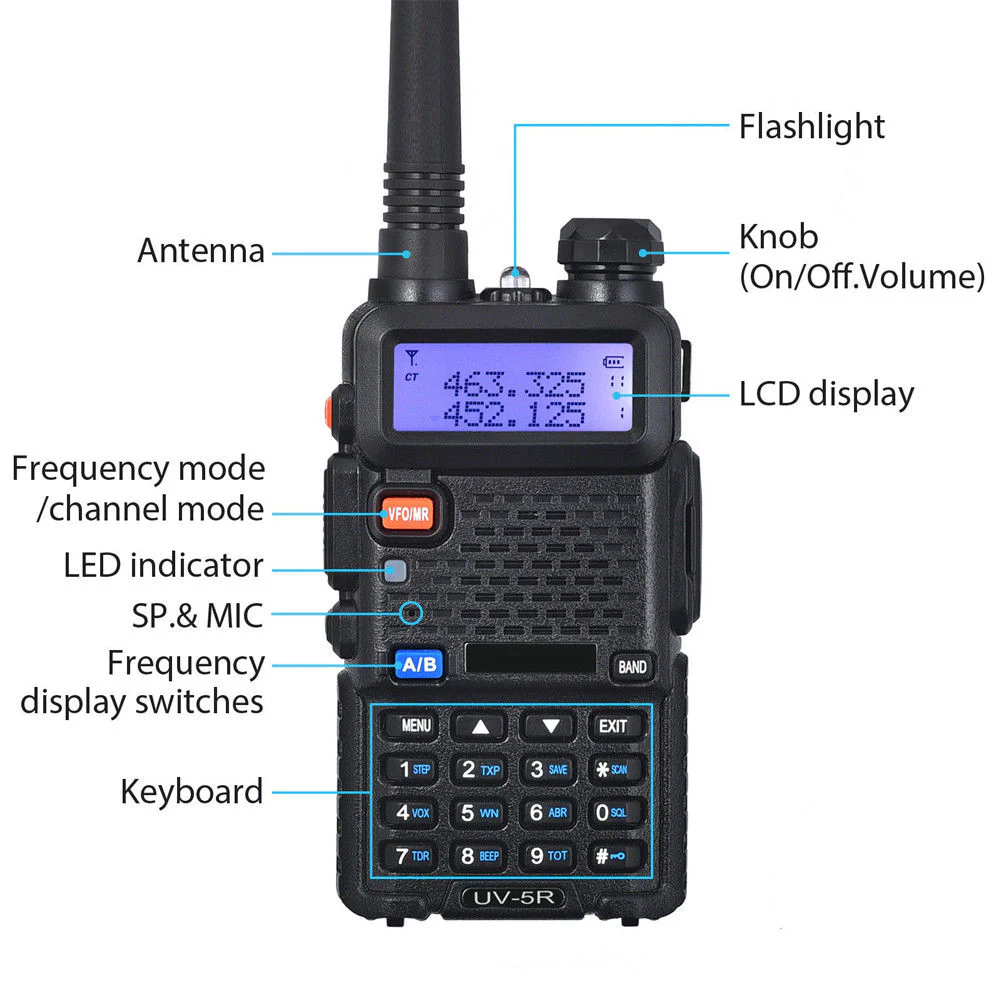

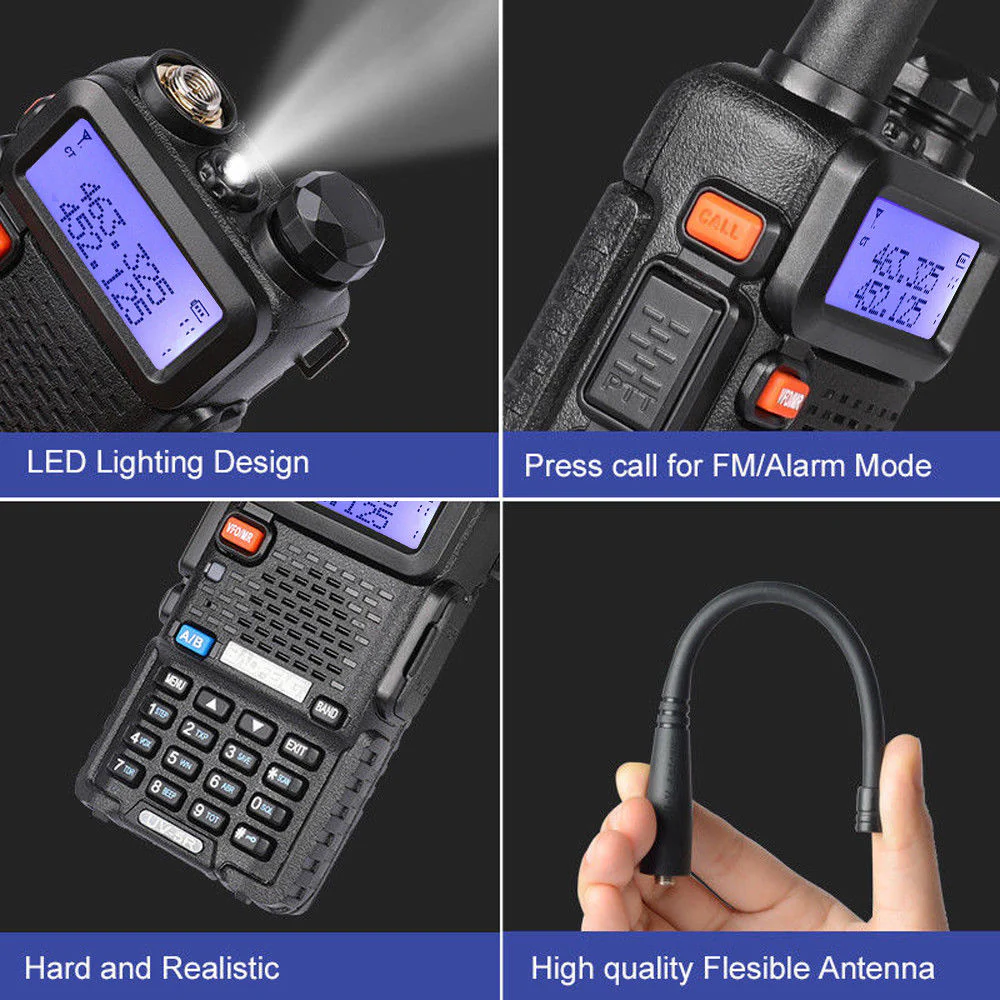

8. LED Flashlight
9. Large LCD Display
10. Hight /Low RF Power Switchable
11. 25KHz/12.5KHz Switchable
12. Emergency Alert
13. Low Battery Alert
14. Battery Saver
15. Time-out Timer
16. Keypad Lock
17. Monitor Channel
18. Channel Step: 2.5/5/6.25/10/12.5/25KHz
19. ROGER SET

Specifications:
▶ Output: 4W/1W
▶ Channel: 128
▶ Frequency stability: ± 2.5ppm
▶ Antenna: Dual band High Gain antenna
▶ Antenna impedance: 50Ω
▶ Operating voltage: DC 7.4V
▶ Wide/Narrow Band(25kHz/12.5kHz)

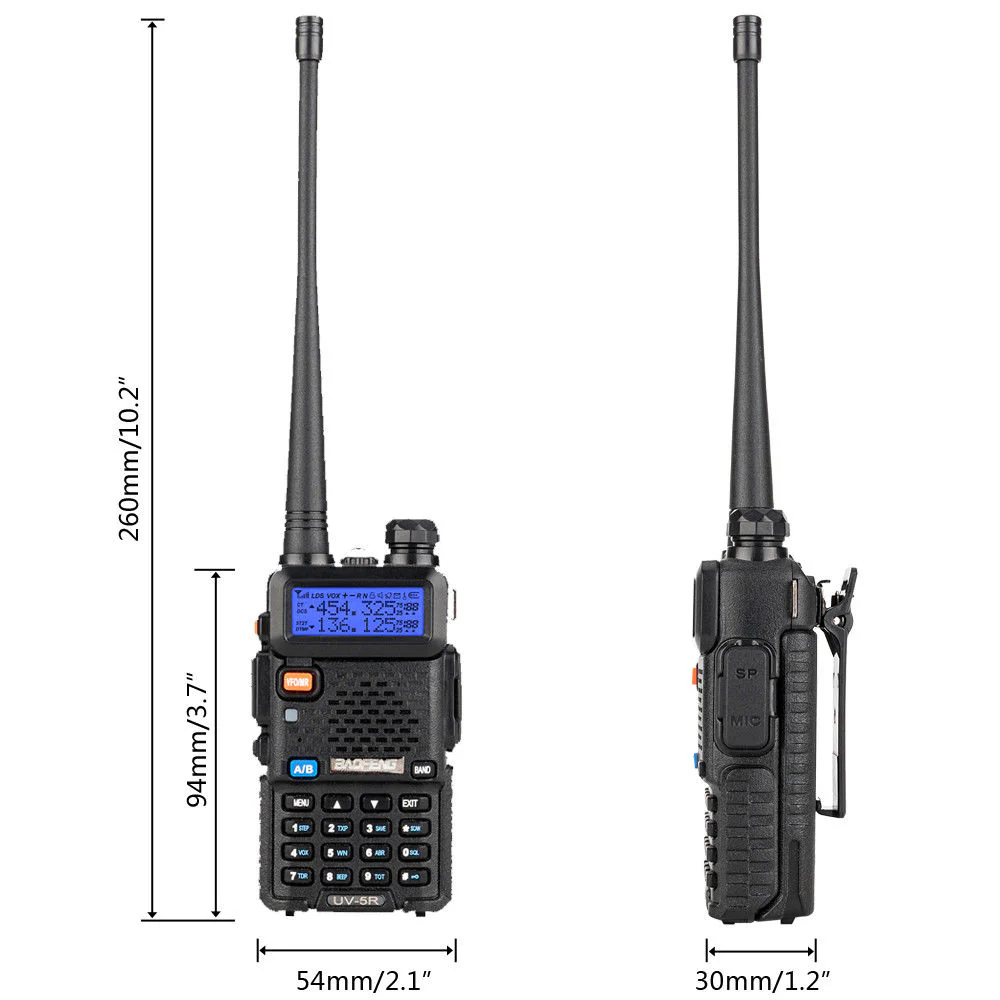

▶ Weight: 500g (including battery, antenna)

Note
Antenna Type: Compatible with SMA-Female Antenna

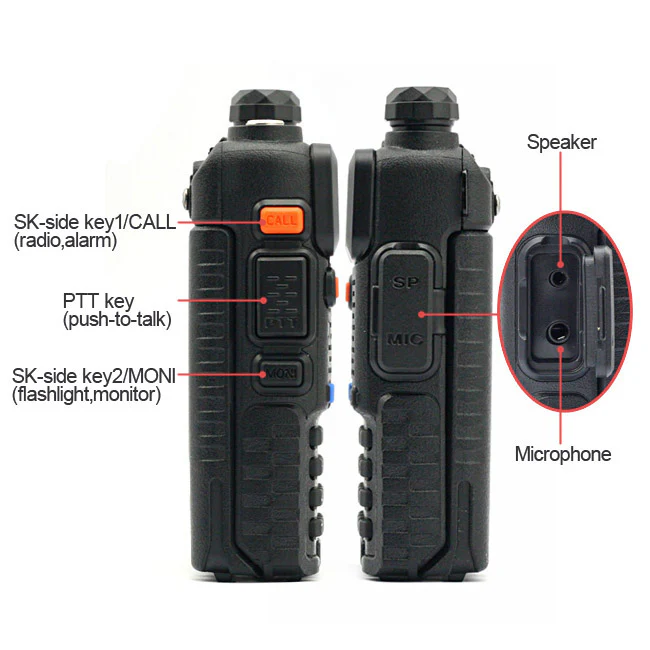

Earpiece & Programming Type: Compatible with K-plug earpiece/cable

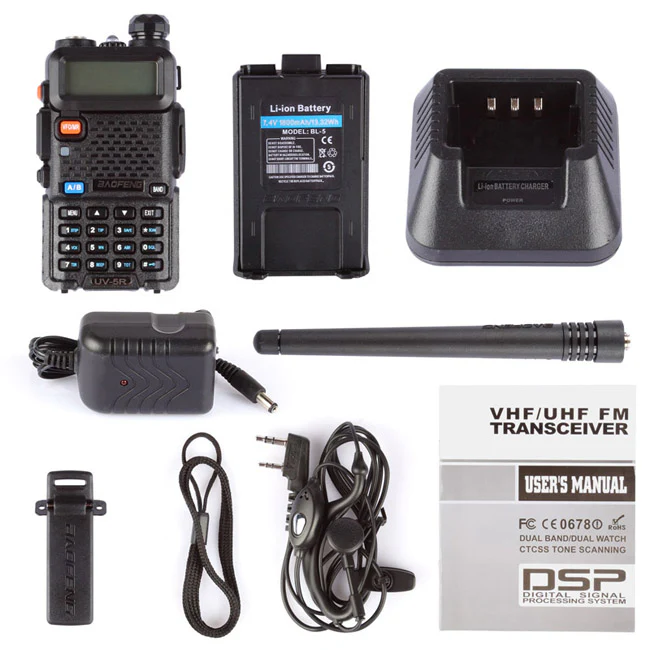

Package Content:
1 x BaoFeng UV-5R Two-Way Radio

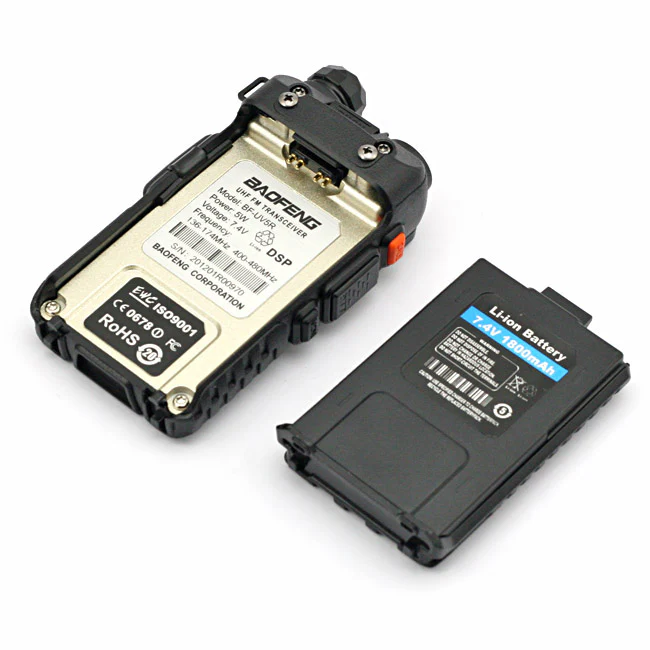

1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x Adapter

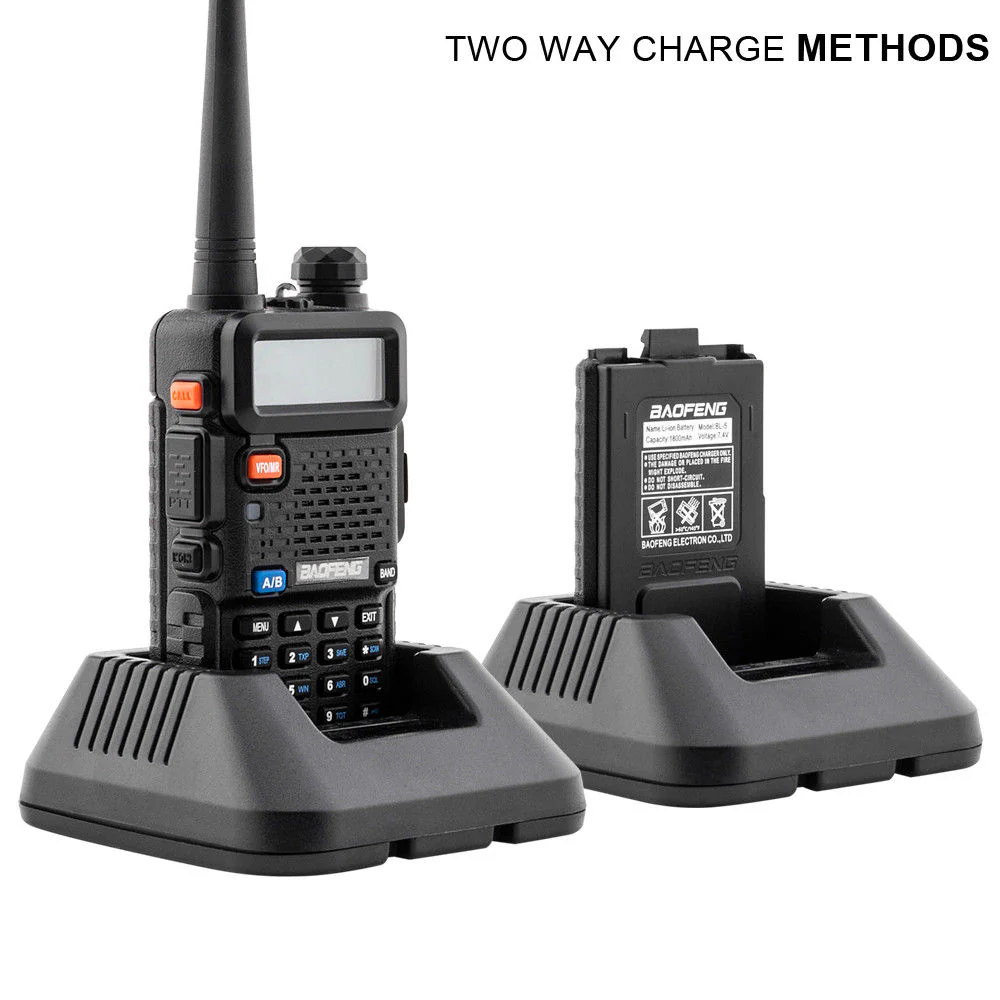

1 x Desktop Charger
